Keyence XM-5000 Handheld CMM – Portable Coordinate Measuring Machine

Take your quality inspection anywhere with the Keyence XM-5000, a shop-floor-ready handheld coordinate measuring machine that brings CMM-grade accuracy out of the metrology lab and onto the production floor.

Key Specifications:

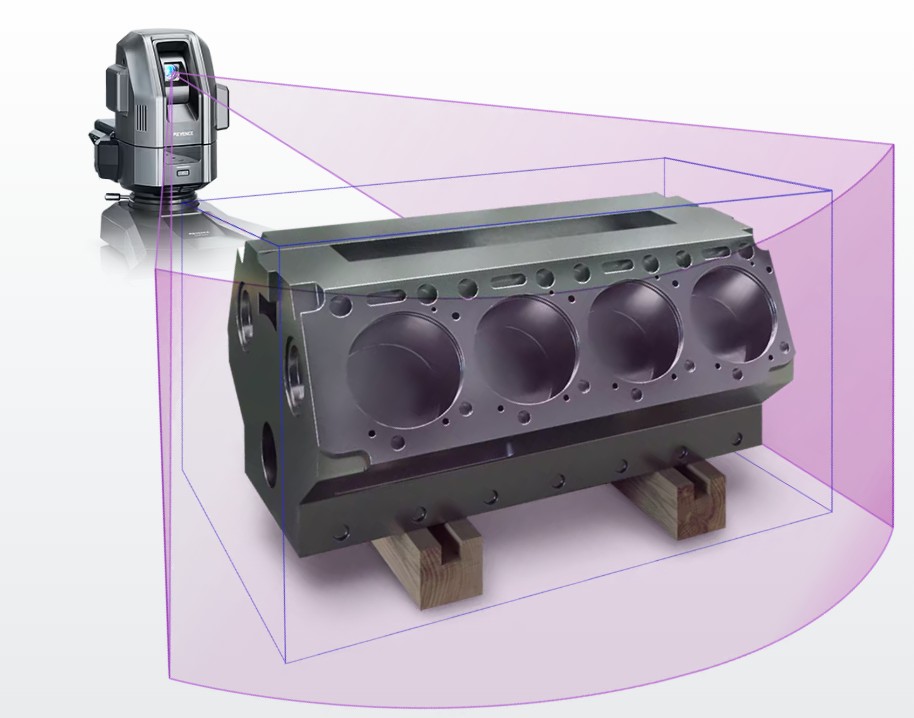

• Maximum Measurement Volume: 2,000 × 1,200 × 1,000 mm (78.7″ × 47.2″ × 39.4″)
• Indication Error Accuracy: ±(7 + 9L/1000) μm
• Repeatability: ±3 μm
• Minimum Display Unit: 0.000004″
• 7-marker probe tracking via near-infrared camera system

Why the XM-5000?

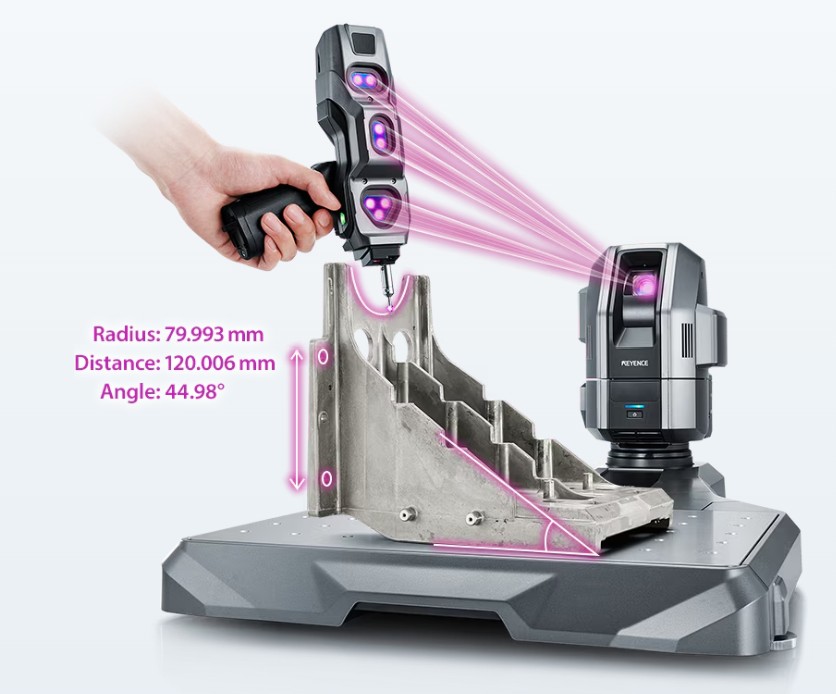

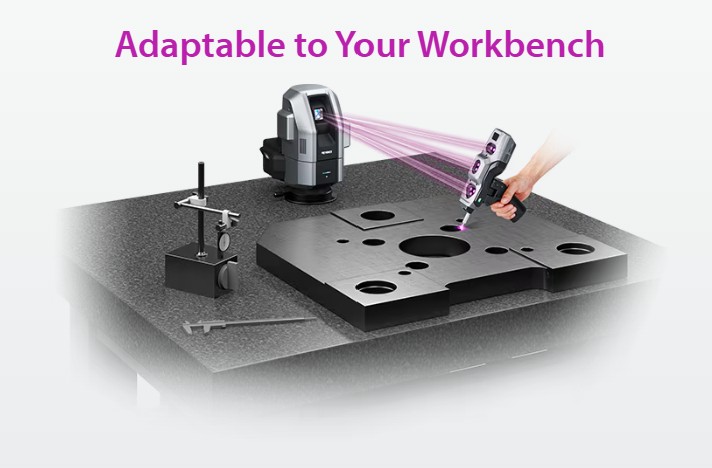

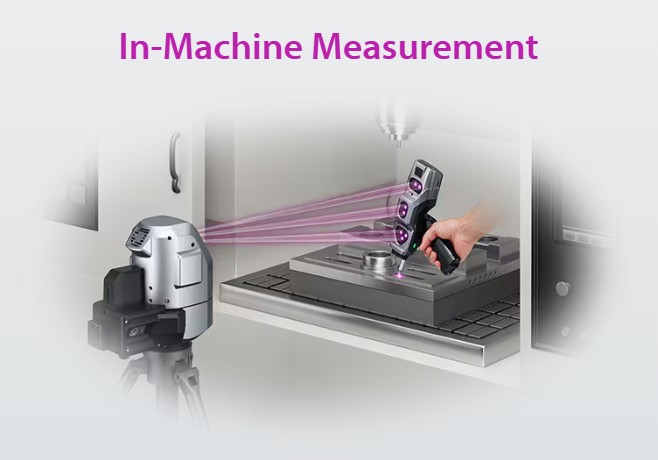

Unlike traditional fixed CMMs, the XM-5000 is fully portable — measure parts in-machine, on the shop floor, or at the assembly station without moving the workpiece. The integrated tracking camera continuously captures near-infrared light from the 7-marker probe, delivering real-time position data across the full wide-area measurement zone. The system is capable of measuring everything from palm-sized components to large complex assemblies with equal precision.

Automatic data recording and built-in GD&T reporting make this an ideal tool for both incoming inspection and in-process quality control. No specialist CMM operator required — the intuitive handheld design means any trained team member can get accurate, repeatable results.

Ideal For:

• Aerospace, automotive & precision engineering manufacturers
• In-process and first-article inspection

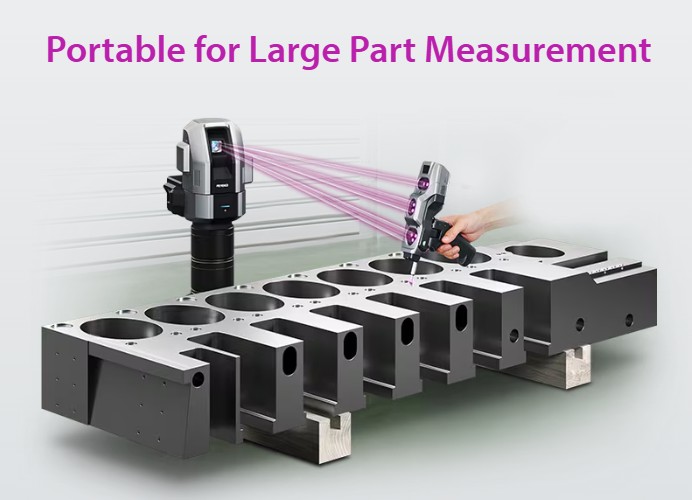

• Shop floors where bringing parts to a CMM is impractical
• Quality teams looking to reduce inspection bottlenecks
